Causes

Client not registered in Identity Server

This error occurs because the connecting app (the "Client") isn't registered in the IdentityServer database as an authorized client.

The authorized client registration occurs when the Identity DB is seeded, and in eShopOnContainers this happens when the DB is first created. So this only happens when first installed or when restarting the Identity service if the DB has been deleted.

When registering the clients, eShopOnContainers reads the values from the following configuration variables, from either the appsettings.json file, the docker-compose.override.yml file or the equivalent environment variables:

- SpaClient
- MvcClient
- LocationApiClient
- MarketingApiClient
- BasketApiClient
- OrderingApiClient
- MobileShoppingAggClient
- WebShoppingAggClient
- WebhooksApiClient
- WebhooksWebClient

Docker Desktop upgraded to 2.2 and higher

Docker removed DockerNAT in Docker Desktop Community 2.2 so you can't use localhost to access a container and you must switch to host.docker.internal

Not starting from the correct address

This can be the result of any, or a combination, of the two causes above.

Details

Identity Server

IdentityServer uses the RedirectUri to decide if the connecting client is authorized

When a user that's not been authorized tries to use the [client] app, they are redirected to the IdentityServer's /connect/authorize endpoint, and the request includes a redirection uri that's used to complete the login process, as shown in the following image:

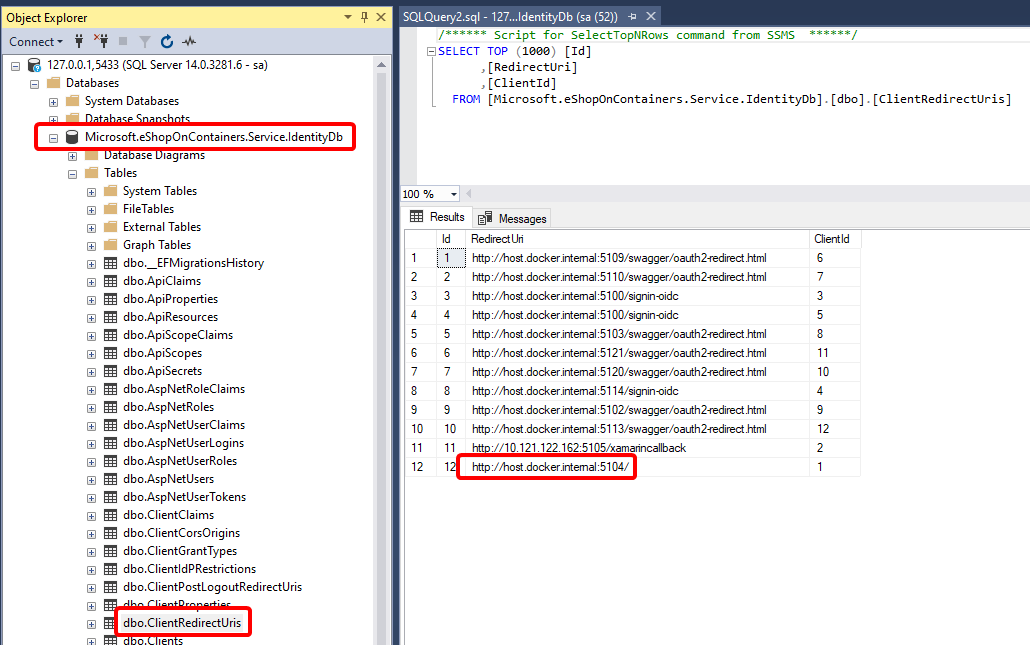

The authorized clients are registered in the Clients table and the related redirect URIs in the ClientRedirectUris table as shown in the following image:

It's important to keep in mind that if the application is registered as http://host.docker.internal:5004 but started as http://localhost:5104 it's considered to be a different one, so it'll get the unauthorized_client message.

Startup address

The startup address is defined in the .env file and used in docker-compose.override.yml as shown in the following images.

.env file

cocker-compose.override.yml file

Important

You MUST run the docker-compose up command from the folder where the .env file is, otherwise the values defined in the file won't be used.

Solutions

So the possible solution could be one or a combination of:

Make sure you are starting the app from the correct address.
Update the .env file as needed.
Update the ClientRedirectUris table to the correct values.
Drop the IdentityDb database and restart the Identity service, after updating the docker-compose.override.yml file, or the configmap.yaml in Kubernetes, so that all the clients are registered correctly.
